UPE Channels

UPE

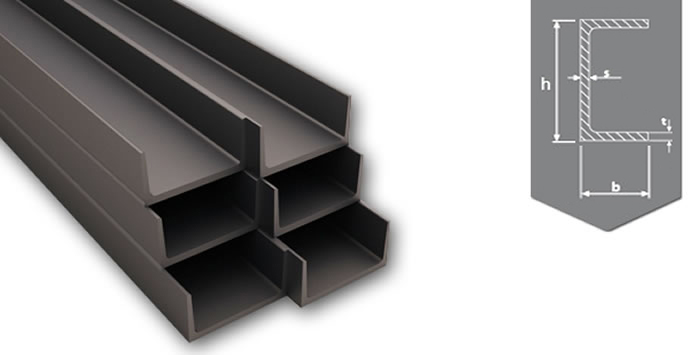

Size	Depth (h)	Width (b)	Thickness Web (s)	Thickness Flange (t)	Weight
	mm	mm	mm	mm	Kg/m
80	80	40	4.3	6.7	6.6
100	100	45	4.5	7,2	8,3
120	120	50	4.6	7.7	10.3
140	140	65	5	9	14.50
220	220	85	6.6	12	26.60

UPE AA

Size	Depth (h)	Width (b)	Thickness Web (s)	Thickness Flange (t)	Weight
	mm	mm	mm	mm	Kg/m
160	160	64	5	8.4	14.20
180	180	70	5.1	8.7	16.30
200	200	76	5.2	9	18.40
240	240	90	5.6	10	24.00

Length	Standart	Quality
5500 mm 5800 mm 6000 mm 6100 mm 12000 mm	DIN EN ASTM	S235JR[ST37] S275JR[ST44] S355JR[ST52]
